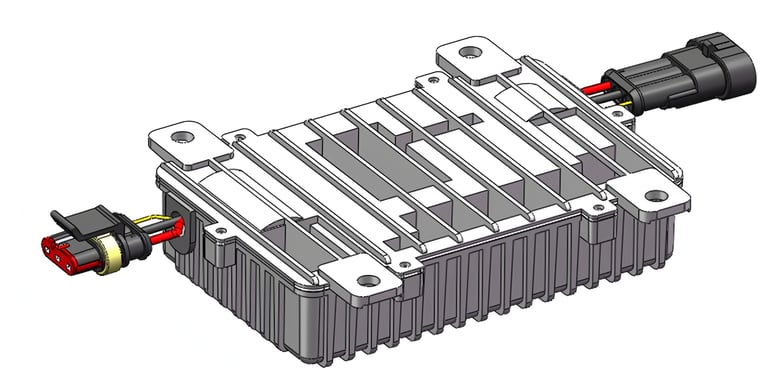

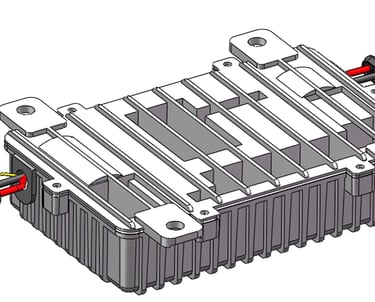

IP67 BS100WD Seal DC-DC

This BS100WD V inverter boasts high cost-effectiveness, user-friendly design, reliable operation in a wide temperature range, and efficient pure sine wave output.

Size, Weight and Temperature

• Net Weight: 1.6 kg

• Operating Temperature: −40℃—105℃

• Storage Temperature: −50℃—120℃

• Dimensions: 139*121*31 mm

Technical Parameters

• DC Input Voltage Range: 18-36V;

• Maximum DC Input Current: 6A

• DC Output Voltage:14VDC±5%

• Overall Efficiency: ≥92.0%

• Noise: 0

• Protection Class (Waterproof): IP69
