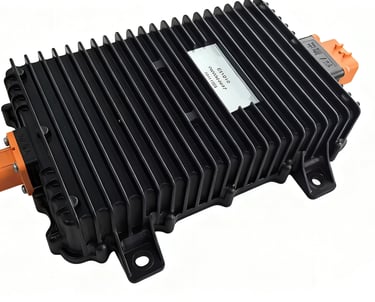

IP67 BSD1KW2412 Seal DC-DC OBC Converter

This BSD1KW2412 inverter boasts high cost-effectiveness, user-friendly design, reliable operation in a wide temperature range, and efficient pure sine wave output.

Size, Weight and Temperature

• Net Weight: 1.7 kg

• Operating Temperature: −40℃—85℃

• Storage Temperature: −40℃—85℃

• Dimensions: 236*119*36 mm

Technical Parameters

• DC Input Voltage Range: 22~32VDC;

• Maximum DC Input Current: 50A

• DC Output Voltage:14VDC±5%

• Overall Efficiency: ≥92.0%

• Noise: 0

• Protection Class (Waterproof): IP69

• DC loads with a rated voltage of 12V and power within 1000W (such as 12V DC bulbs, 12V DC water heaters, etc.)

• Equipped with reliable hardware protection and voltage and current self-inspection functions. -

• The input end can be connected to flooded lead-acid batteries, sealed (colloidal) lead-acid batteries, lithium batteries, etc., meeting the usage requirements in multiple scenarios.
