BS3000W-24V Inverter

This 3kw inverter is a high-efficiency power supply designed for small household or portable energy storage applications.

It incorporates a high-frequency soft-switching power conversion topology and DSP-based full digital control, thus boasting high conversion efficiency, high reliability, and a compact size.

The inverter is equipped with comprehensive digital protection functions, including over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection.

Size, Weight and Temperature

• Net Weight: 3.8 kg

• Operating Temperature: −25℃—45℃

• Storage Temperature: −40℃—75℃

• Dimensions: 325*206*125mm

• Humidity:5%—95%

• Working Altitude: 4000 meters

Technical Parameters

• DC Input Voltage Range: 21-30V;

• Maximum AC Output Current: 13A@220Vac

• Output Waveform: Pure Sino Wave

• Overall Efficiency: ≥93.0%

• Noise: ≤45db

• Protection Class: IP20

• MPPT(PV): 400W Input 10-60V; Output: 24V20A

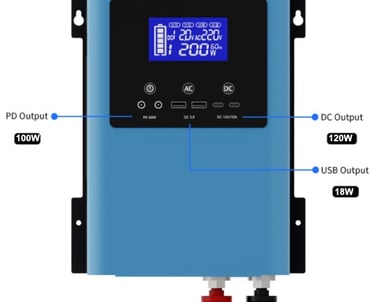

• A Port: 5V/3A,9V/2A,12V/1.25A,18W

• PD: PD3.0 100W

• DC12V: 12V10A 120W

• Battery Info Display Panel: Yes

Features

A. Conversion efficiency up to 93%;

B. Adopts a high-frequency isolated solution, ensuring safety and reliability;

C. Features a constant power mode

D. Working Hours: 24 Hours Non-Stop
