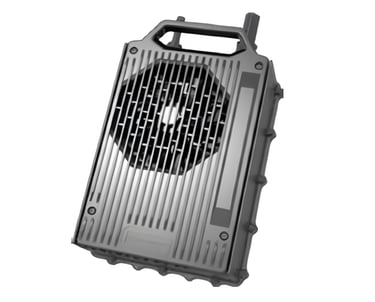

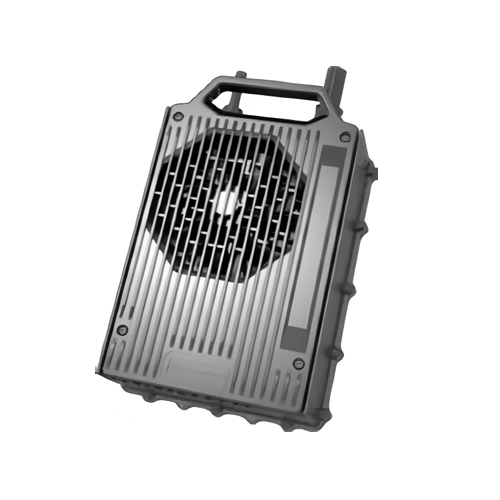

IP65 BS3000A Seal Charger

This series of chargers adopts a sealed structure design; it is suitable for flooded lead-acid batteries, sealed (gel) lead-acid batteries, lithium batteries, nickel-hydrogen batteries, nickel-cadmium batteries, etc.; and can be used for cyclic charging or floating charging of battery packs in electric amusement equipment, AGV, electric forklifts, floor scrubbers, floor sweepers, golf carts, electric ships, etc.

Size, Weight and Temperature

• Net Weight: 5kg

• Operating Temperature: −30℃—65℃

• Storage Temperature: −40℃—95℃

• Dimensions: 272*197*95 mm

Technical Parameters

• AC Input Voltage Range: 220-240VAC; 45-65Hz

• Maximum AC Input Current: 15A@220VAC:

• Overall Efficiency: ≥92.0%

• Power Factor: ≥99.0%

• Noise: ≤45dB

• Protection Class (Waterproof): IP65

• Optional Function: CAN BUS, Power Activation Function

  External Indicator,Infrared Controller.
