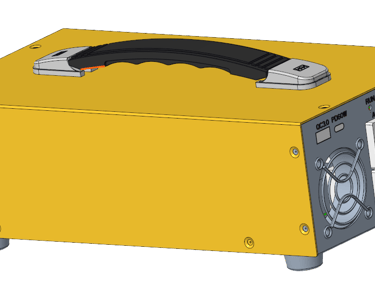

BS2000W-48V Inverter

This product is a high-efficiency power supply designed for small household energy storage or portable energy storage applications. It incorporates a high-frequency soft-switching power conversion topology and DSP-based full digital control, thus boasting high conversion efficiency, high reliability, and a compact size.

The product is equipped with comprehensive digital protection functions, including over-voltage, under-voltage, over-current, short-circuit, and over-temperature protection.

Size, Weight and Temperature

• Net Weight: 3.5 kg

• Operating Temperature: −25℃—45℃

• Storage Temperature: −40℃—70℃

• Dimensions: 268*148*78mm

Technical Parameters

• DC Input Voltage Range: 40-58V;

• Maximum AC Output Current: 8.7A@220Vac, 18.1A@110Vac:

• Output Waveform: Pure Sino Wave

• Overall Efficiency: ≥93.0%

• Noise: ≤45db

• Protection Class: IP20

• MPPT: 400W Input 10-60V; Output: 24V

• A Port: 5V/3A,9V/2A,12V/1.25A,18W

• PD:60W; QC3.0:5V/3A,9V/2A,12V/1.25A,18W

• DC12V: 12V10A

• Battery Info Display Panel: Yes

Features

A. Conversion efficiency up to 93%;

B. Adopts a high-frequency isolated solution, ensuring safety and reliability;

C. Features a constant power mode
